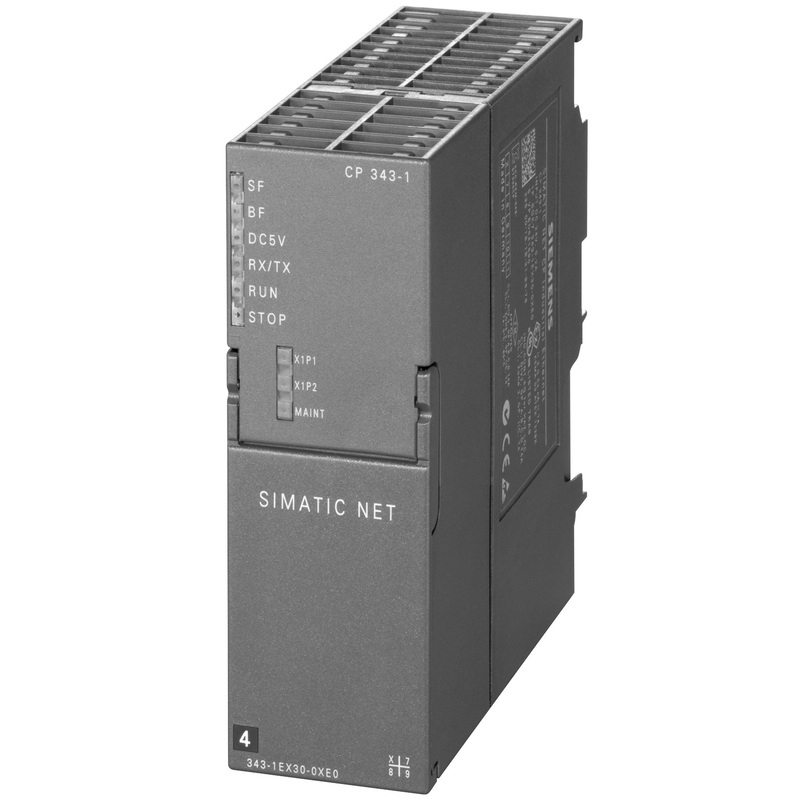

Communications processor CP 343-1 for connection of SIMATIC S7-300 to Industrial Ethernet via ISO and TCP/IP, PROFINET IO controller or PROFINET IO device, integrated 2-port switch ERTEC 200, S7 communication, fetch/write, SEND/RECEIVE RFC1006, multicast, DHCP, NTC- CPU sync, with and without diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s.

transfer rate
transfer rate
● at the 1st interface10 ... 100 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet2
number of electrical connections
● at the 1st interface / according to Industrial Ethernet2
● for power supply1
type of electrical connection
● of Industrial Ethernet interfaceRJ45 port
● at the 1st interface / according to Industrial EthernetRJ45 port
type of electrical connection
● for power supply2-pole plugable terminal block
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / 1 / from backplane bus5 V
supply voltage24 V
supply voltage / external24 V
supply voltage / external / at DC / rated value24 V
relative positive tolerance / at DC / at 24 V20 %
relative negative tolerance / at DC / at 24 V15 %
consumed current
● from backplane bus / at DC / at 5 V / typical0.2 A
● from external supply voltage / at DC / at 24 V / typical0.16 A
● from external supply voltage / at DC / at 24 V / maximum0.2 A
power loss [W]5.8 W
ambient conditions
ambient temperature
● for vertical installation / during operation0 ... 40 °C
● for horizontally arranged busbars / during operation0 ... 60 °C
● during storage-40 ... +70 °C
● during transport-40 ... +70 °C
relative humidity
● at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
module formatCompact module S7-300 single width
width40 mm
height125 mm
depth120 mm
net weight0.22 kg
fastening method
● S7-300 rail mountingYes
performance data / open communication
number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum16
data volume
● as user data per ISO connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
● as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
● as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum8 Kibyte
● as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum2 Kibyte
number of Multicast stations16
performance data / S7 communication
number of possible connections / for S7 communication
● maximum16
performance data / multi-protocol mode
number of active connections / with multi-protocol mode32
performance data / PROFINET communication / as PN IO controller
number of PN IO devices / on PROFINET IO controller / operable / total32
number of external PN IO lines / with PROFINET / per rack1
data volume
● as user data for input variables / as PROFINET IO controller / maximum1 Kibyte
● as user data for output variables / as PROFINET IO controller / maximum1 Kibyte
● as user data for input variables per PN IO device / as PROFINET IO controller / maximum1433 byte
● as user data for output variables per PN IO device / as PROFINET IO controller / maximum1433 byte
● as user data for input variables per PN IO device / for each sub-module as PROFINET IO controller / maximum240 byte
● as user data for output variables per PN IO device / for each sub-module as PROFINET IO controller / maximum240 byte
performance data / PROFINET communication / as PN IO device
product function / PROFINET IO deviceYes
data volume
● as user data for input variables / as PROFINET IO device / maximum512 byte
● as user data for output variables / as PROFINET IO device / maximum512 byte
● as user data for input variables / for each sub-module as PROFINET IO device240 byte
● as user data for output variables / for each sub-module as PROFINET IO device240 byte
● as user data for the consistency area for each sub-module240 byte
number of submodules / per PROFINET IO-Device32
performance data / telecontrol
protocol / is supported
● TCP/IPYes
product functions / management, configuration, engineering
product function / MIB supportYes
protocol / is supported
● SNMP v1Yes
● DCPYes
● LLDPYes
configuration software
● requiredSTEP 7 V5.4 SP2 or higher / STEP 7 Professional V11 (TIA Portal) or higher
identification & maintenance function
● I&M0 - device-specific informationYes
● I&M1 - higher level designation/location designationYes
product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
product functions / diagnostics
product function / web-based diagnosticsYes
product functions / switch
product feature / switchYes
product function
● switch-managedNo
● with IRT / PROFINET IO switchYes
● configuration with STEP 7Yes
product functions / redundancy
product function
● ring redundancyYes
● redundancy managerNo
protocol / is supported / Media Redundancy Protocol (MRP)Yes
product functions / security
product function
● password protection for Web applicationsNo
● ACL - IP-basedYes
● ACL - IP-based for PLC/routingNo
● switch-off of non-required servicesYes
● blocking of communication via physical portsYes
● log file for unauthorized accessNo
product functions / time
product function / SICLOCK supportYes
product function / pass on time synchronizationYes
protocol / is supported
● NTPYes
standards, specifications, approvals
reference code
● according to IEC 81346-2:2019KEC
further information / internet links
internet link
● to web page: selection aid TIA Selection Toolhttps://www.siemens.com/tstcloud
● to website: Industrial communicationhttps://www.siemens.com/simatic-net
● to web page: SiePortalhttps://sieportal.siemens.com/
● to website: Image databasehttps://www.automation.siemens.com/bilddb
● to website: CAx-Download-Managerhttps://siemens.com/cax
● to website: Industry Online Supporthttps://support.industry.siemens.com
security information
security informationSiemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
